DR08

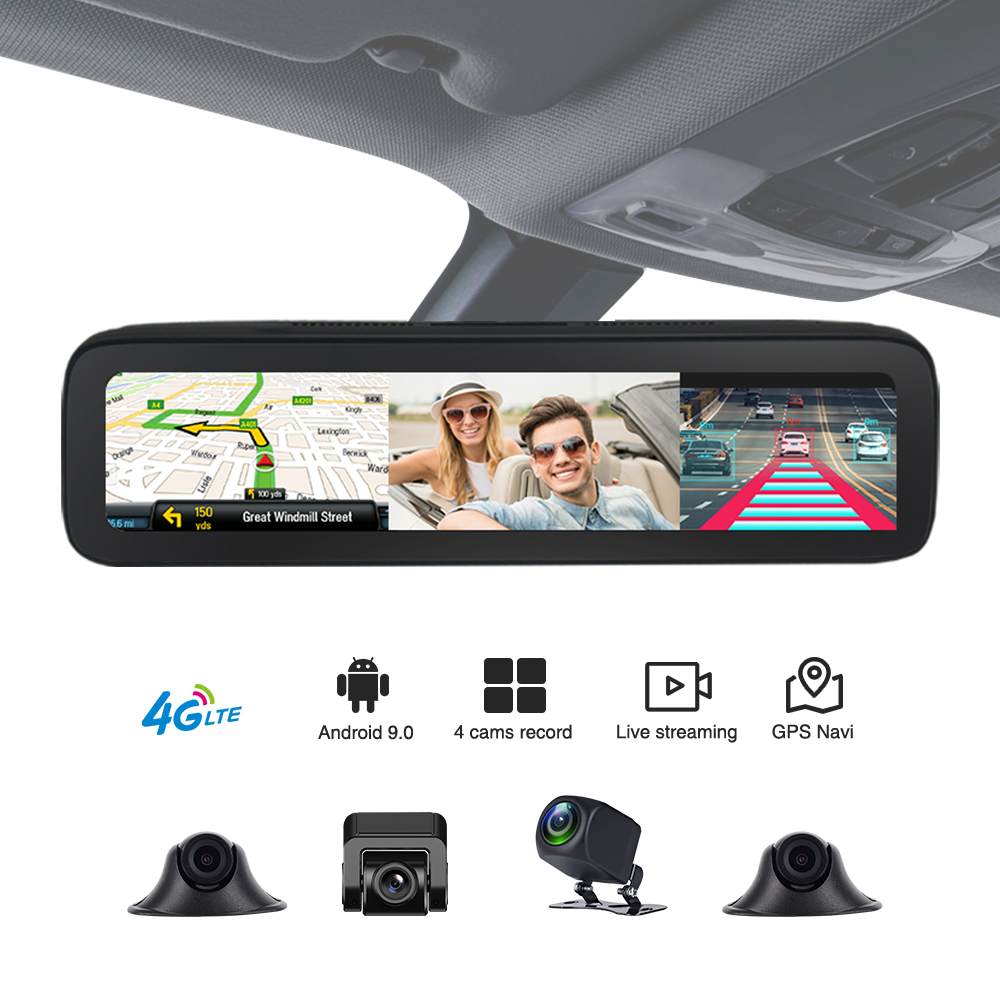

DR08 is one Android 9.0 os, 4CHS video recording, GPS navigation & track, WiFi hotspot , 4G SIM card and Remote Monitor ect Multiple functions. All in One Vehicle Fleet Management Mirror DVR and Dashboard installation “CarAssist” app and “CMSV6” platform are available for remote monitor and vehicle fleet monitor.
Model number: DR08
CPU: AutoChip AC8257 Cortex-A53 Quad Core , 2.0GHz
RAM: EMMC5.1 32GB
ROM: LPDDR4 2GB
Screen: 11.26inch Touch Screen
Touch Screen: Multiple points capacitive touch screen
GPS: GPS+Beidou dual mode gps location
OS: Android 9.0
Camera Lens: Support 4CHS video recording ( front , right , left , and back camera AHD 720P )
Remote monitor: Support Mobile APP and PC remote monitor, and vehicle fleet management
GPS Navigation: Support online/offline GPS Navigation
Network Bands: GSM B5/B3/B8; WCDMA B1/B5/B8; TDD-LTE B38/B39/B40/B41; FDD-LTE B1/B3/B5/B8 or B1/B4/B5/B8 for USA market.
Bluetooth: BT4.1, support bluetooth phone call and music transfer by BT.
WiFi: 802.11ac/b/g/n 2.4G&5G, support WiFi hotspot.
FM: Support FM transmit function
Video format: TS
Video compression: H.264
Video Recording time: 128G card support 34 hours continuously video recording.
G-Sensor: 3-axis G-Sensor
USB: MINI USB 2.0 , support OTG function
Storage: TF card, support Maximum 256GB micro sd card (not include)
Software upgrade: Upgrade by TF card, OTA online upgrade.
MIC: Build in MIC-Phone Noise Reduction microphone
Speaker: Built-in high-fidelity 4Ω2W speaker
Key buttons: Reset and power button
Serial communication: Support 3 Channels UART port
IO Interface: Support 4 Channels IO inputs (turn left, turn right, brake, reverse)
Working Temperature: -20~+70°C
Storage Temperature: -30~+80°C
