Immobilizer-C06

Description

Car immobilizer, Car alarm. It’s base on RF 2.4GHz Communication.
1. Alarm mode and anti-hijacking:
The car engine will be locked automatically and could not be started when
the transmitter is out of effective services range (about 2 meters), the intelligent engine lock enters alarm mode. if the transmitter is within the effective services range (about 2 meters), the intelligent engine will disarm the alarm status, at that time the car could be started normally.
2. Anti-hijacking status (car owner must take alone the transmitter)
ACC ON, intelligent engine enters the anti-hijacking mode at once. Under the status of anti-hijacking, the buzzer will sound once one second, from fortieth second to fiftieth second, if the car owner is five meters away the car. From fiftieth to sixtieth second, the buzzer will sound twice each second, and three time every second from sixtieth to seventieth second. At the seventy first second, the car engine will be shut down automatically. After the car owner comes back into the car, the anti-hijacking mode will be disarmed and the car can be started as usual.

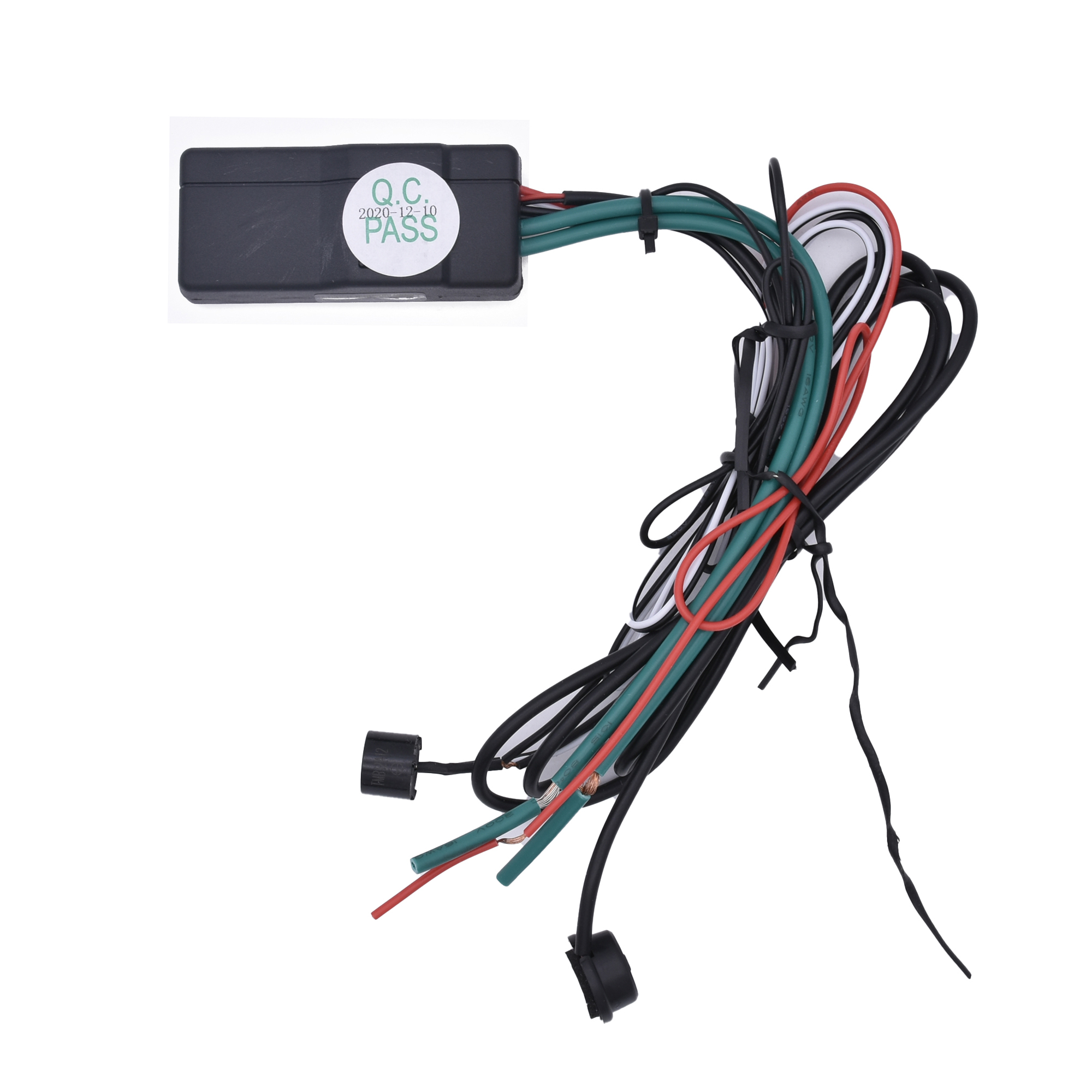

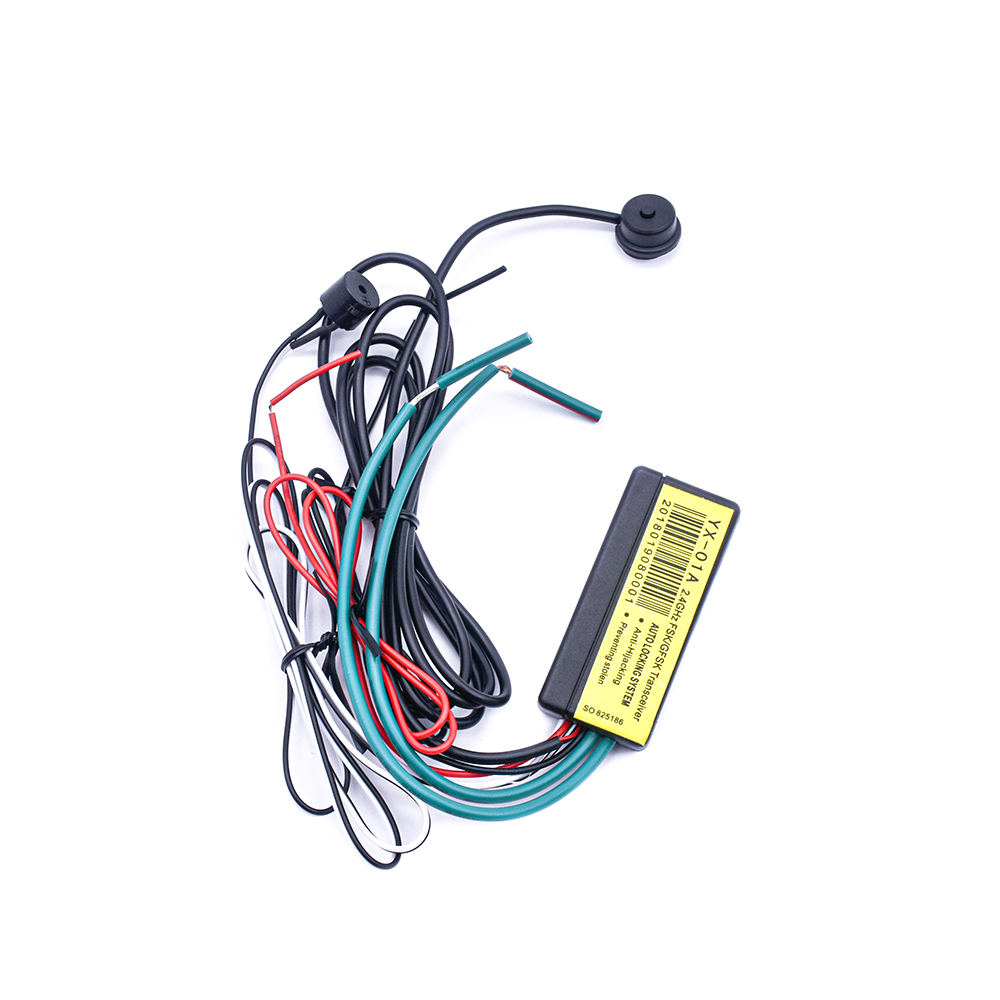

TECHNICAL DATA (Main Unit):
Effective receiving range : 2 meters
Voltage: 12+3V
Current: ≤21mA
Frequency: 2.4Ghz

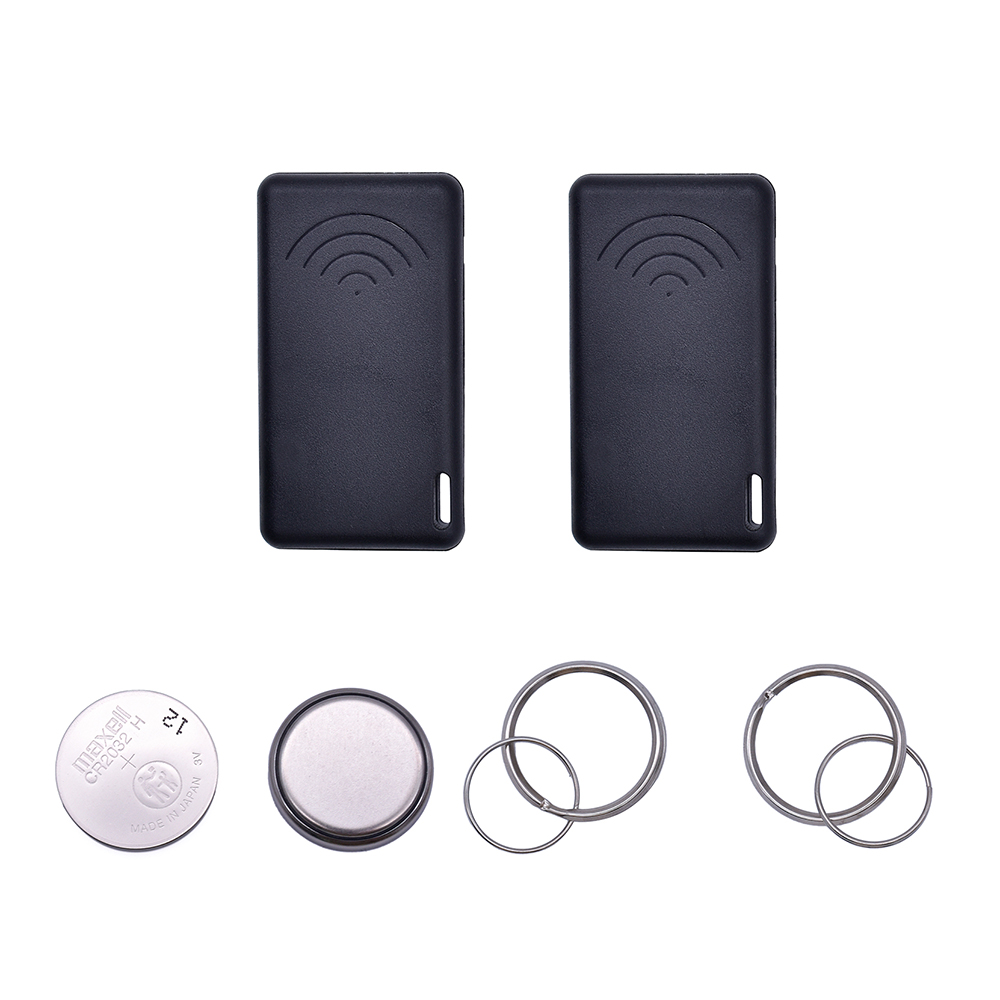

TECHNICAL DATA (Remote Transmitter)
Voltage: 3V
Static current: 5uA
Frequency: 2.4Ghz
Battery: CR2032
