CCTV-ST10
• Metal housing
• Wifi 4G Camera Cctv Network Solar Camera
• Fast sleep with low power consumption and fast wake-up to achieve intelligent power saving
• Adopt high-performance 1/3″ black light full-color image processor
• 8W solar panel
• With Smart Light
• Ultra low power consumption, long stand-by
• Built-in 15600mAh battery
• Sound and light alarm function
• Support cloud storage local storage.
• OEM
| Networking method | WIFI | 2.4G wifi |
| 4G | EA: FDD-LTE: B1/B2/B3/B5/B7/B8/B20 TDD-LTE: B38/B40/B41 NA: |
Description
• Metal housing
• Fast sleep with low power consumption and fast wake-up to achieve intelligent power saving
• Adopt high-performance 1/3″ black light full-color image processor
• 8W solar panel
• With Smart Light
• Ultra low power consumption, long stand-by
• Built-in 15600mAh battery
• Sound and light alarm function
• Support cloud storage local storage.
• OEM
| Parameters | ||

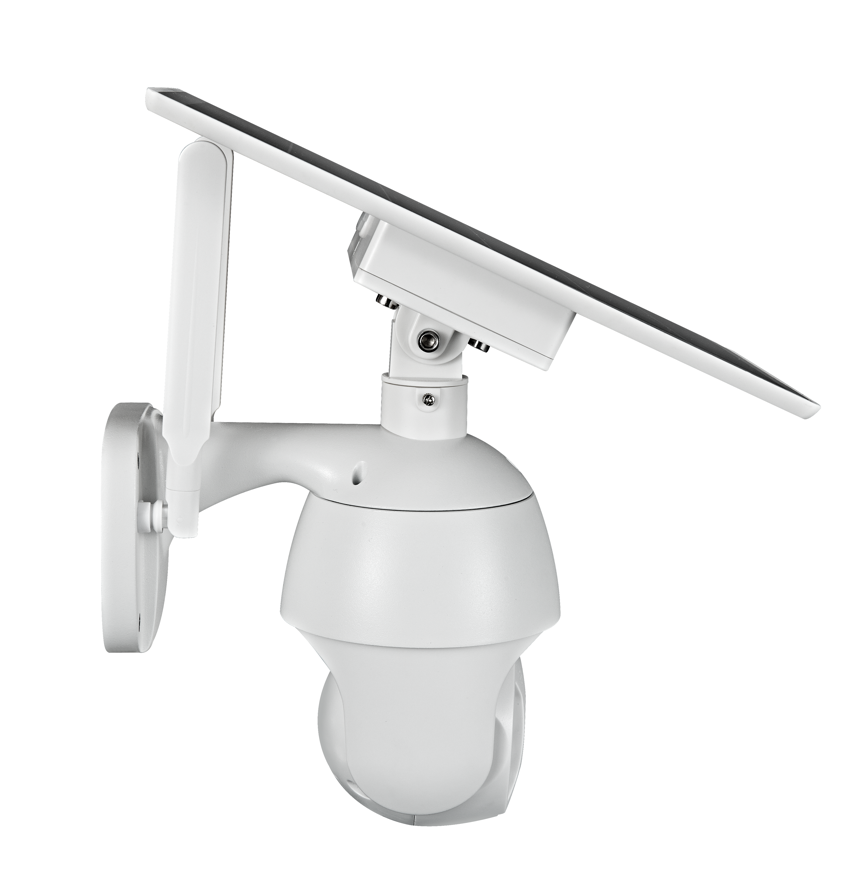

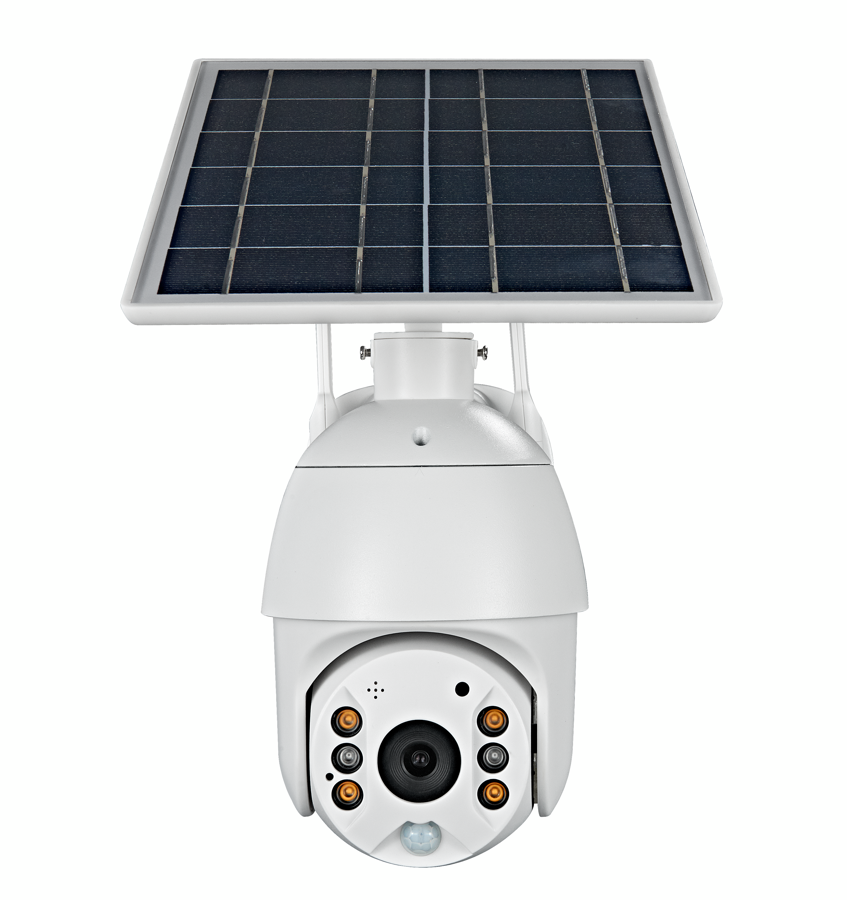

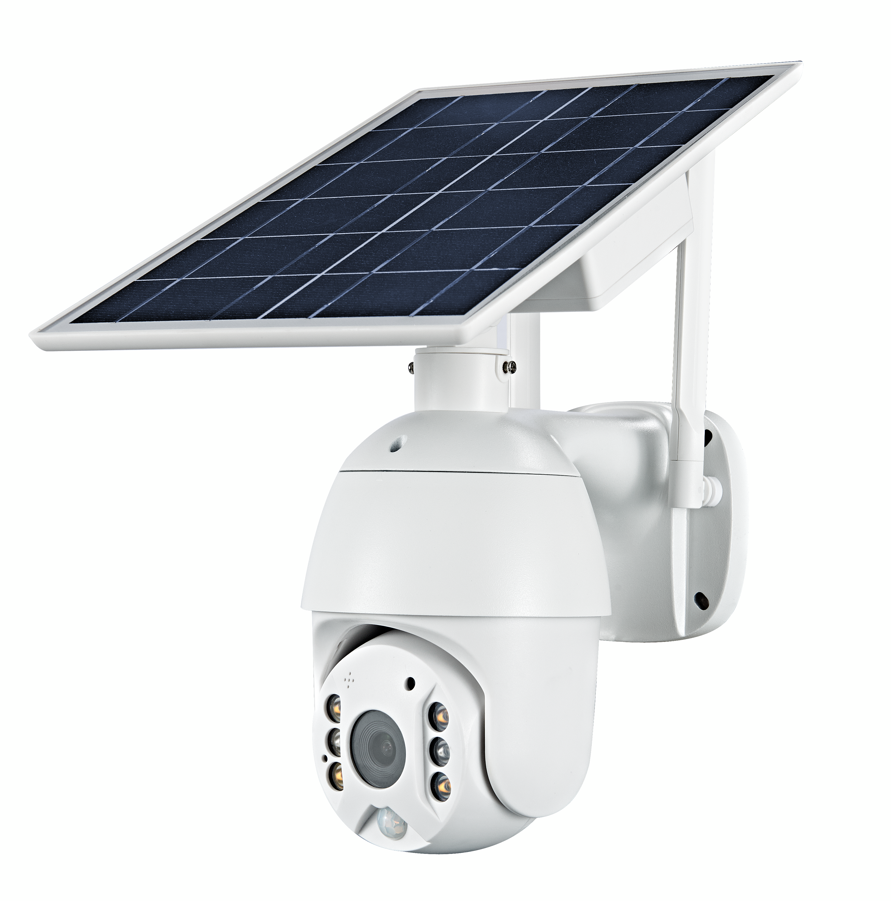

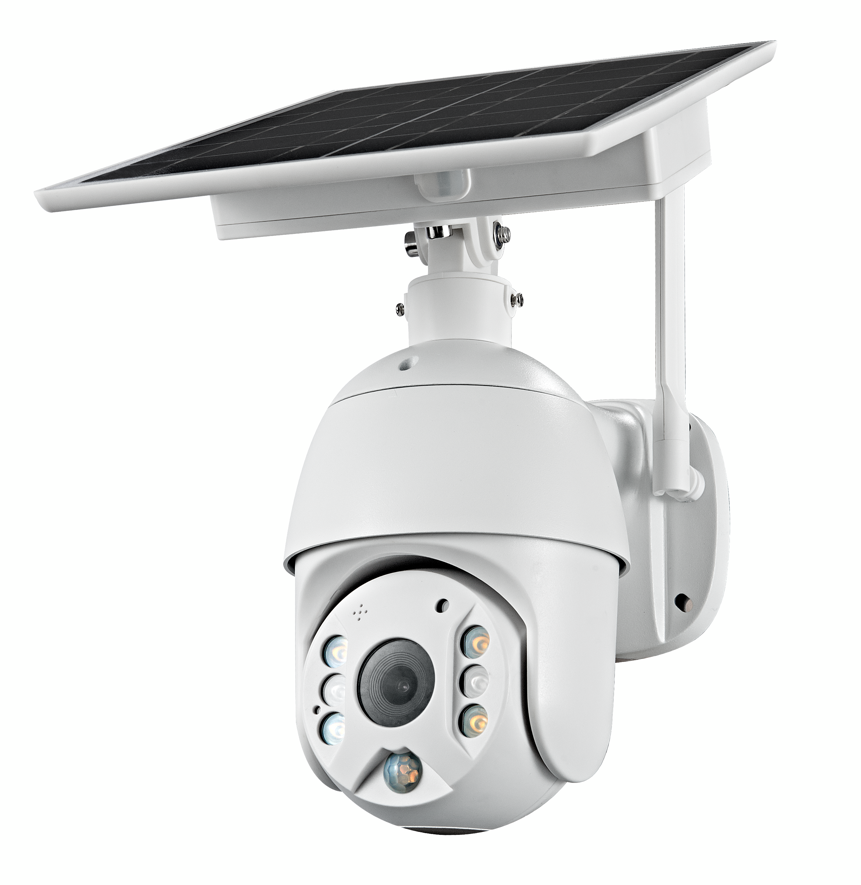

| Product name | Solar Battery Powered Floodlight PTZ Camera | |
| Model | ST10-4MP | |
| Comprehensive | Master chip | T31ZX |
| Sensor | GC4653 1/3″ Image Sensor | |
| Compression format | H.264+, H.265 | |
| Pixel | 2K 4MP | |
| APP | UBOX | |
| Networking method | WIFI | 2.4G wifi |
| 4G | EA: FDD-LTE: B1/B2/B3/B5/B7/B8/B20 TDD-LTE: B38/B40/B41 NA: |
|
| Alarm mode | Detection mode | PIR Human induction detection |
| Detection distance | 0~12M | |
| Detection angle | 120° | |
| Alarm method | push alarm message to mobile phone | |
| PTZ | PTZ angle | Horizontal 355° Vertical 100° |
| Rotating speed | Horizontal 55°/sec Vertical 40°/sec | |
| Night Vision Mode | Full color night vision | Illumination 0.00001LUX |
| Infrared light | Infrared LED distance 15M | |
| White light | White LED distance 30M | |
| Sound | Built-in speaker | 3W |
| Built-in microphone | Monitoring range 20M | |
| Lens | Focal length | 3.6mm |
| Angle | 85° | |
| Storage | Cloud storage | Cloud storage (alarm recording) |
| Local storage | TF card (max 128G) | |
| Power supply | Power supply mode | Solar + 6*186500 Battery (15600mAh) |
| Solar cell power | 8W | |
| Battery capacity | built in 6*186500 Battery (15600mAh) | |
| Maximum working power | 4W | |
| Standby power | 0.003W | |
| Other | Working environment | Indoor/outdoor |
| Operating temperature | ﹣20~50℃ | |
| Working humidity | 0%~90%RH | |
| Package | Net weight | 2.5KG/pcs |
| Color box size | 24.5*20*13 cm | |
| Qty | 6pcs | |
| Gross weight | 15KG/CTN | |
| Carton size | 61.5*30*36 cm | |
