D3
4G Dashcam+ADAS+DMS
D3 is one Android 5.1 OS, dual cameras video recording, GPS track, WiFi hotspot, 4G SIM card and Remote Monitor Multiple functions , CarAssist app and CMSV6 platform are available for remote monitor and vehicle fleet monitor.
Model number: D3
OS: Android 5.1
CPU: AutoChip MT6753 Cortex-A53 Qtca Core
RAM: LPDDR3 1GB
ROM: EMMC5.1 8GB
Screen: NONE
Network bands: GSM B5/B3; WCDMA B1/B5 TD-SCDMA B34/B39; TDD-LTE B38/B39/B40/B41, FDD-LTE B1/B3/B5; FDD-LTE B1/B4/B5 for North Amercia Market
WiFi: 802.11b/g/n 2.4GHz; support WIFI hotspot
Front camera: GC2053(1080P); 4glass 140° wide angle ; H.264 code; MIPI interface
Second camera: AHD720+IR night vision inside camera (standard ); AHD720, back camera (optional )
G-Sensor: 3-axis G-sensor sensor, support loop recording
Parking Monitor: 3-axis G-sensor sensor, support parking monitoring
IR night vision: Support Infrared light
SOS: Support one-key click alarm
External Storage: Maximum support TF card 512GB(not included)
USB: MicroUSB 2.0
Microphone: Built-in high-sensitivity microphone
Speaker: Built-in high-fidelity mono 1.5W / 8R speaker
Supply Voltage: DC9V-12V
Firmware upgrade: Support TF card upgrading,
Mobile APP: “CarAssist” for Android/ iOS
Car Assist APP: real-time monitor, gps log track playback , video playback

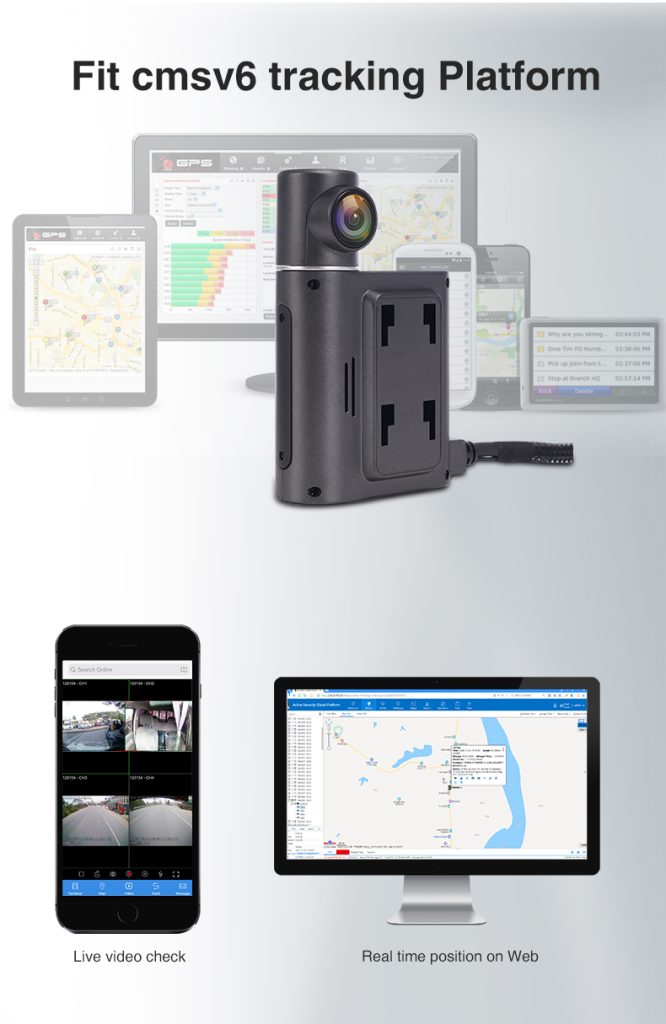

PC Platform: CMSV6–Vehicle fleet monitor platform
Live Streaming
GPS log Tracking
SOS: Panic Button
OTA+Cloud
Electronic Fence Alarm”
DSM: “The driver monitoring systems is to alert the driver when signs of drowsiness or distraction
(smoking, phone-call etc) are detected. Drivers receive an audio warning, “

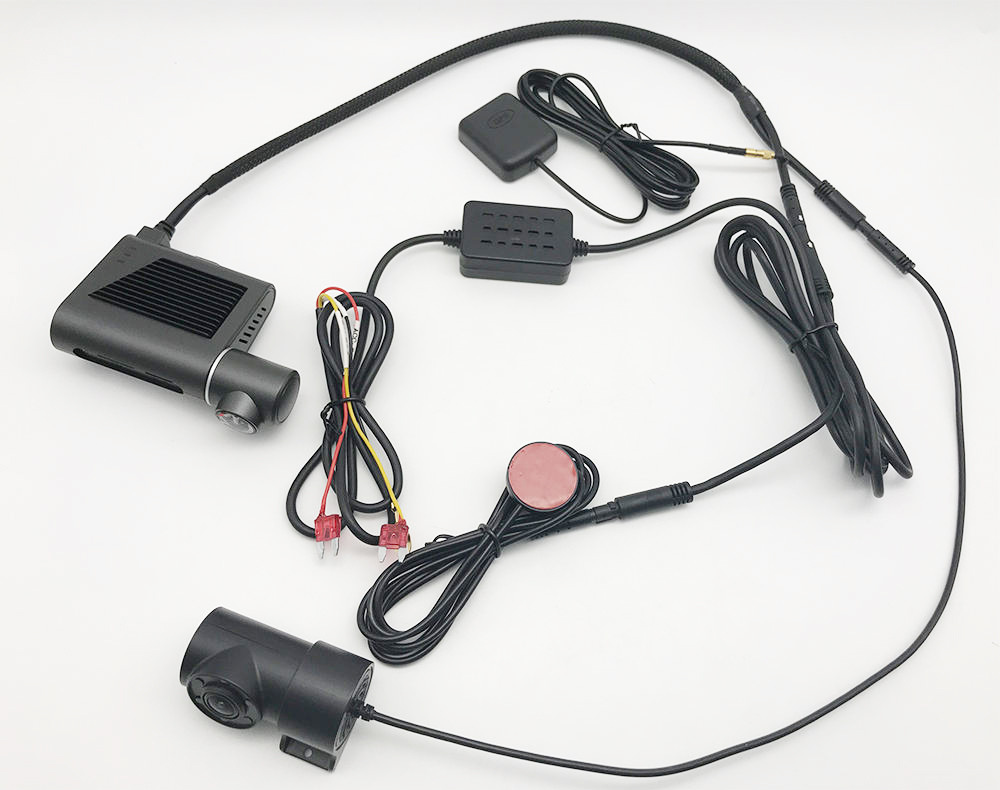

Standard Package:
1xT3 dash cam
1xRear camera
1xGPS antenna
1xPower cable with SOS button
1x3M sticker
1xEnglish user manual
Working Temperature: -20~+70°C
Storage Temperature: -30~+80°C
