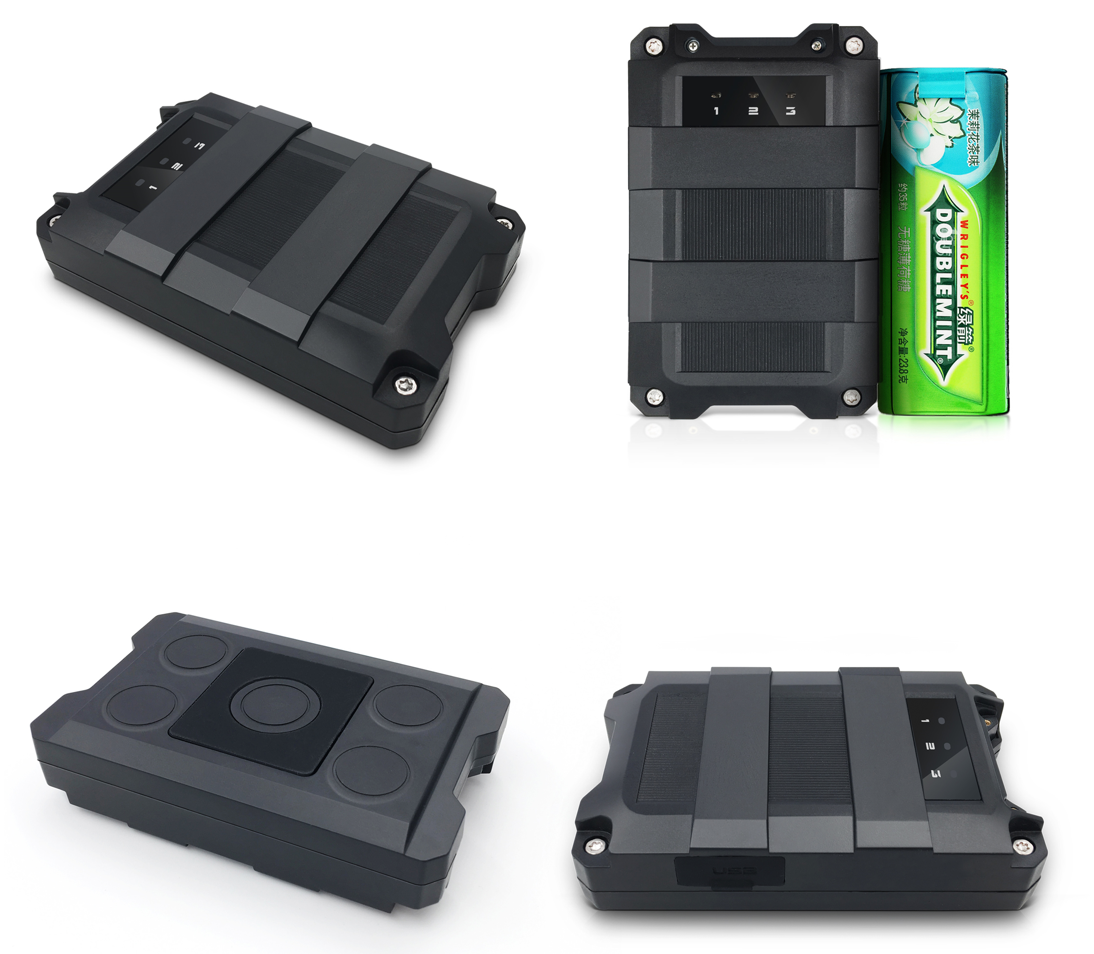

GPS Tracker-AT07
AT07 is 4G CAT1+GSM Protable Magnetic GPS tracker with GPS/Beidou/Galileo/AGPS/LBS/WIFI positioning, which support bluetooth, WIFI scan, Intelligent working mode, Ultra low power consumption. It can support to detect motion atuomatically, It has 5000mAh rechargeable battery, which is widely used in personnel positioning, vehicle positioning, fleet management and object tracking.
Network bands:
EA (Europe, Asia, Africa):
LTE FDD: B1/B3/B5/B7/B8/B20/B28
LTE TDD: B38/B40/B41
GSM/GPRS/EDGE: 900/1800MHz
LA (Latin America, Australia):
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28/B66
LTE TDD: B38/B40/B41
GSM/GPRS/EDGE: 850/900/1800/1900MHz
Description
AT07 is 4G CAT1+GSM Protable Magnetic GPS tracker with GPS/Beidou/Galileo/AGPS/LBS/WIFI positioning, which support bluetooth, WIFI scan, Intelligent working mode, Ultra low power consumption. It can support to detect motion atuomatically, It has 5000mAh rechargeable battery, which is widely used in personnel positioning, vehicle positioning, fleet management and object tracking.
| Product Parameter | |
| Physical characteristics | Dimensions: 100*60*24mm |
| weight:<200g | |
| Color: Black | |
| Waterproof grade: IP65 | |
| Temperature range | Normal operating temperature: -30 °C ~ + 75 °C |
| Extension operating temperature: -40 °C ~ + 85 °C | |
| Storage temperature: -40 °C ~ + 90 °C | |
| Working voltage | VBAT：3.45V～4.2V，TYP：3.8V |
| Working current | Flight Mode current : 1.5～2mA |
| Standby current : 3～5mA | |
| BLE ON Extra current : ～3mA | |
| Working current : ～80mA | |
| MCU | Optionally, devices that require ultra-low power consumption are standard with an MCU |
| Frequency range | CA (Chinese mainland, India, Vietnam) |
| LTE FDD: B1/B3/B5/B8 | |
| LTE TDD: B34/B38/B39/B40/B41 | |
| GSM/GPRS: 900/1800MHz | |
| EA (Europe, Asia, Africa) | |
| LTE FDD: B1/B3/B5/B7/B8/B20/B28 | |
| LTE TDD: B38/B40/B41 | |
| GSM/GPRS/EDGE: 900/1800MHz | |
| LA (Latin America, Australia) | |
| LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28/B66 | |
| LTE TDD: B38/B40/B41 | |
| GSM/GPRS/EDGE: 850/900/1800/1900MHz | |
| GPS specifications | Support the joint positioning of BDS / GPS / Galileo; |
| positioning accuracy:<2m | |
| Speed measurement accuracy: <0.1 m/s | |
| Cold-start capture sensitivity: -148dbm | |
| Tracking sensitivity: -162dbm | |
| GPS antenna size | 25*25*2mm |
| SIM type | Push-Push SIM Card |
| Charging interface | Micro USB, 1A @ 5V, protects against charging access to max 28V. |
| Power switch | Insert Sim card and power on |
| Light detector | Support, used for photosensitive alarm |
| 3D G-sensor | Support, used for intelligent power-saving control |
| Magnetic | Five powerful magnets |
| Battery specifications | Lithium polymer battery, rechargeable, 5000mAh |
