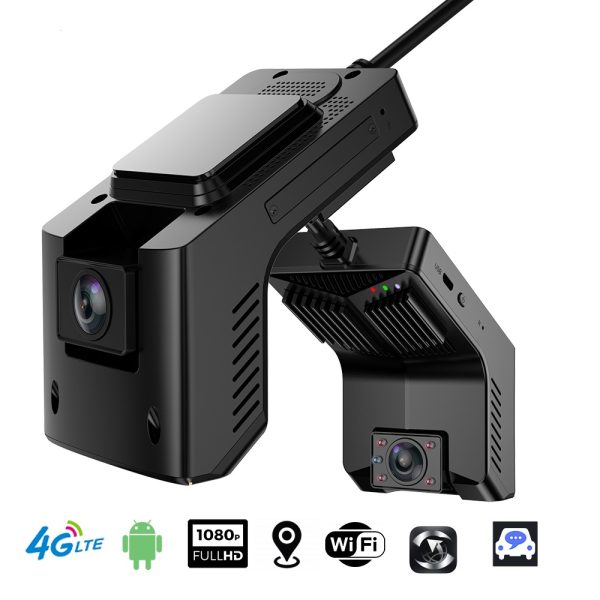

Dashcam-D2
4G Real-Time Video Monitor Solution for vehicle fleet, which combine with dual cameras, SOS, GPS logger track , GPS location, WiFi, Bluetooth, 24 Hours Monitor, Live Streaming, Video Record. ADAS&DSM
Android 5.1 os Multiple functions in one-device.
Mobile APP: CMSV6 video monitor platform available.
Network Bands:
4G: FDD-LTE B1/B3/B4/B5, TDD-LTE B38/B39/B40/B41
3G: WCDMA B1/B5, TD-SCDMA B34/B39
2G: GSM B5/B3
Description
D2 is 4G live Video Monitor Solution for vehicle fleet, which combine with dual lens, SOS, GPS logger track , GPS tracking, WiFi, Bluetooth , Android 5.1 os Multiple functions in one-device. Mobile APP / CMSV6 video monitor platform available. Dashcam, ADAS DSM
| Product Parameter | ||
| Model number | D2 | |
| CPU | AutoChip MT6735 Cortex-A53 Quad Core, 1.5GHz | |
| Storage | RAM | LPDDR3 1GB |
| ROM | EMMC5.1 8GB | |

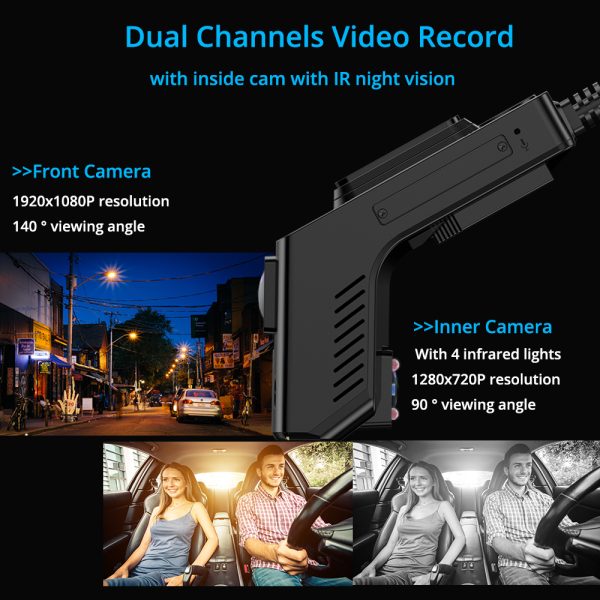

| Front Cam | GC2053(1080P); 4glass 140° wide angle; H.264 code; MIPI interface | |
| Back Cam | GC1064 (720P) 4glass+IR(850); MIPI interface | |
| GPS | GPS&BD Dual Band, Positioning accuracy is less than 10 meters |
|
| OS | Android 5.1 | |
| Supply Voltage | DC9V-12V (If need work with 24V, pls add the convert adapter) | |

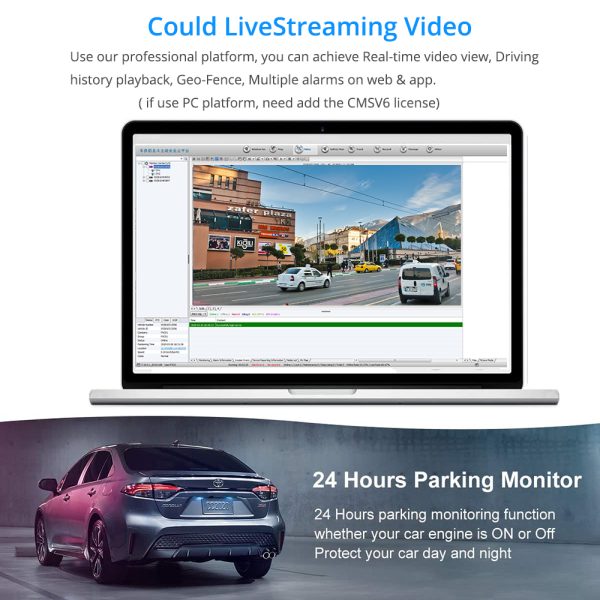

| Remote monitor | Support Mobile APP and PC remote monitor, and vehicle fleet management | |
| GPS Navigation | Support Truck GPS navigation | |
| Network Bands | GSM B5/B3 WCDMA B1/B5 TD-SCDMA B34/B39 TDD-LTE B38/B39/B40/B41 FDD-LTE B1/B3/B5 or B1/B4/B5 (for North America/ South America version) |
|
| Bluetooth Parking Monitor | 3-axis G-sensor sensor, support parking monitoring | |
| WiFi | 802.11ac/b/g/n 2.4G&5G, support WiFi hotspot. | |
| IR night vision | Support Infrared light | |
| Video format | TS | |
| Video compression | H.264 | |
| Video Recording time | 128G card support 34 hours continuously video recording. | |
| G-Sensor | 3-axis G-sensor sensor, support loop recording | |
| USB | MicroUSB 2.0 | |
| Storage | Maximum support TF card 128GB (not included) | |
| Software upgrade | Upgrade by TF card, OTA online upgrade. | |
| MIC | Built-in high-sensitivity microphone | |
| Speaker | Built-in high-fidelity mono 1.5W / 8R speaker | |
| SOS | Support one-key click alarm | |
| Status Indicator | Red light:Network status is normal; Green light flashes: REC status; Blue light is on: GPS status is normal |
|
| RESET | Support | |
| Standard Package | 1x D2 dash cam; 1x GPS antenna; 1x Power cable with SOS button 1x 3M sticker; 1x English user manual |
|
| Working Temperature | -20~+70°C | |
| Storage Temperature | -30~+80°C | |
| Mobile APP “CarAssist” for Android/ iOS | ||
| Parking Monitor | Support capture front and rear camera video and image | |
| Real-time preview | Support video live preview | |
| Two way voice talk | Suppore press and two way voice talking | |
| GPS track history | Support GPS logger path and video synchronous playback | |
| Monitor and Alarm | Support Message / photo alarm if collision happened when car parking | |
| Video download | Support Point-to-point video download to the phone, don’t consume internet data | |
| Share video to alburm | Support car life | |
| CarAssist app for Android/iOS | CarAssist go | |
| Active Security Cloud Platform “CMSV6” for Android/ iOS/ Windows | ||
| CMSV6 license | If need work on CMSV6 platform, need buy the CMSV6 license | |
| Cloud Server | Support to connect with your cloud server | |
| Vehicle Fleet Management | Yes, support Multiple vehicle video monitor and management | |
| Wisdom Board | Manage the vehicle status | |
| Real-time preview & playback | Support multiple device video preview and playback , download | |
| GPS log playback | Support Map mode playback | |
| CMSV6 platform for Android / iOS / Windows |
CMSV6 | |
