Dashcam-D20
D20 is one Android 9.0 os, 4CHS video recording, GPS navigation & track, WiFi hotspot , 4G SIM card and Remote Monitor ect Multiple functions , All in One Vehicle Fleet Management Truck DVR Camera video solution. CarAssist app and CMSV6 platform are available for remote monitor and vehicle fleet monitor.
Network Bands:
2G GSM B5/B3/B8;
3G WCDMA B1/B5/B8;
4G TDD-LTE B38/B39/B40/B41;
4G FDD-LTE B1/B3/B5/B8
Description
D20 is one Android 9.0 os, 4CHS video recording, GPS navigation & tracking, WiFi hotspot , 4G SIM card and Remote Monitor ect Multiple functions , All in One Vehicle Fleet Management Truck DVR Camera video solution. CarAssist app and CMSV6 platform are available for remote monitor and vehicle fleet monitor.
| Product Parameter | ||
| Model number | D20 | |
| CPU | AutoChip AC8257 Cortex-A53 Quad Core , 2.0GHz | |
| Storage | RAM | EMMC5.1 32GB |
| ROM | LPDDR4 2GB | |

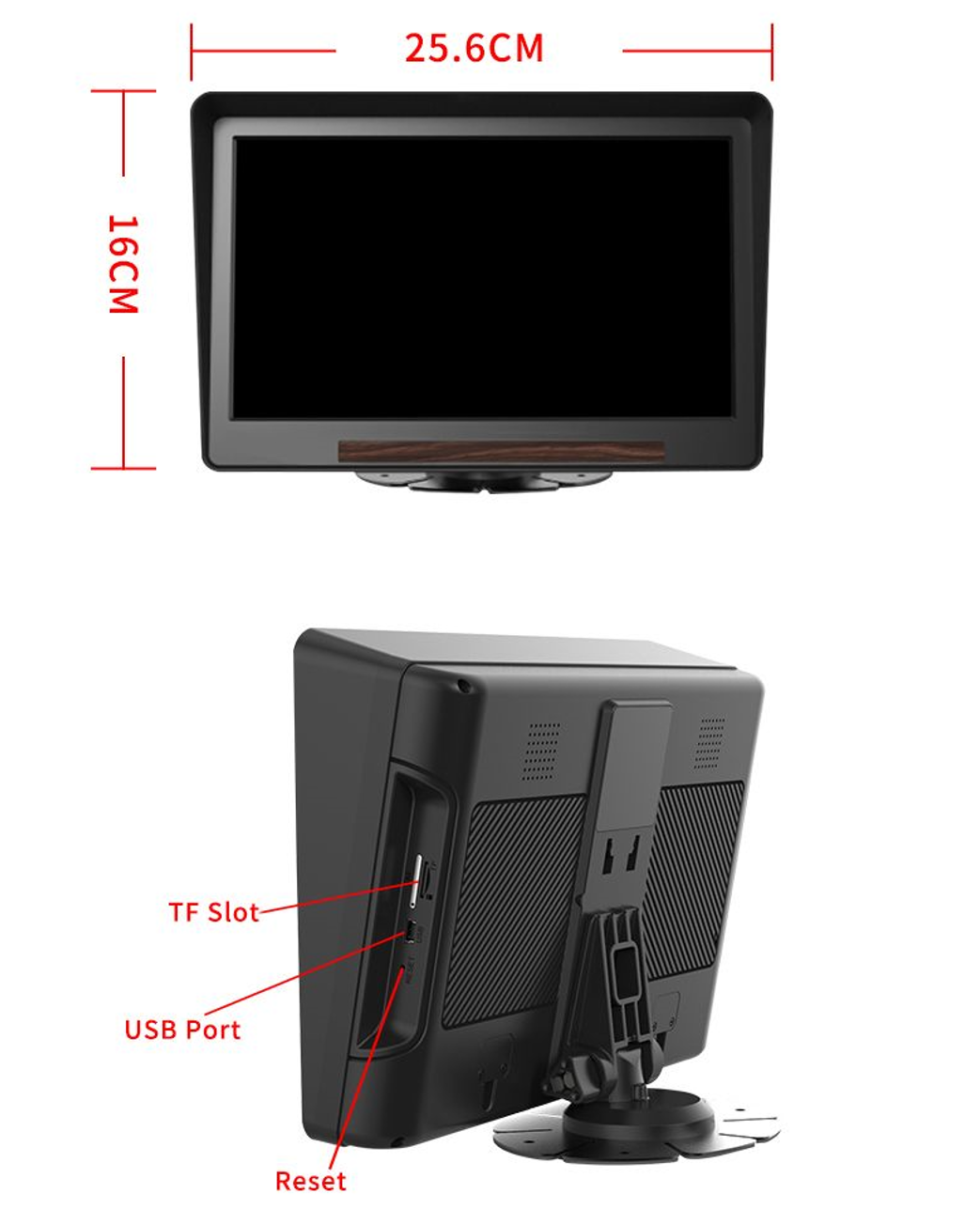

| Screen | 10.1inch , resolution: 1024×600 MIPI interface | |
| Touch Screen | Multiple points capacitive touch screen | |
| GPS | GPS+Beidou dual mode gps location | |
| OS | Android 9.0 | |

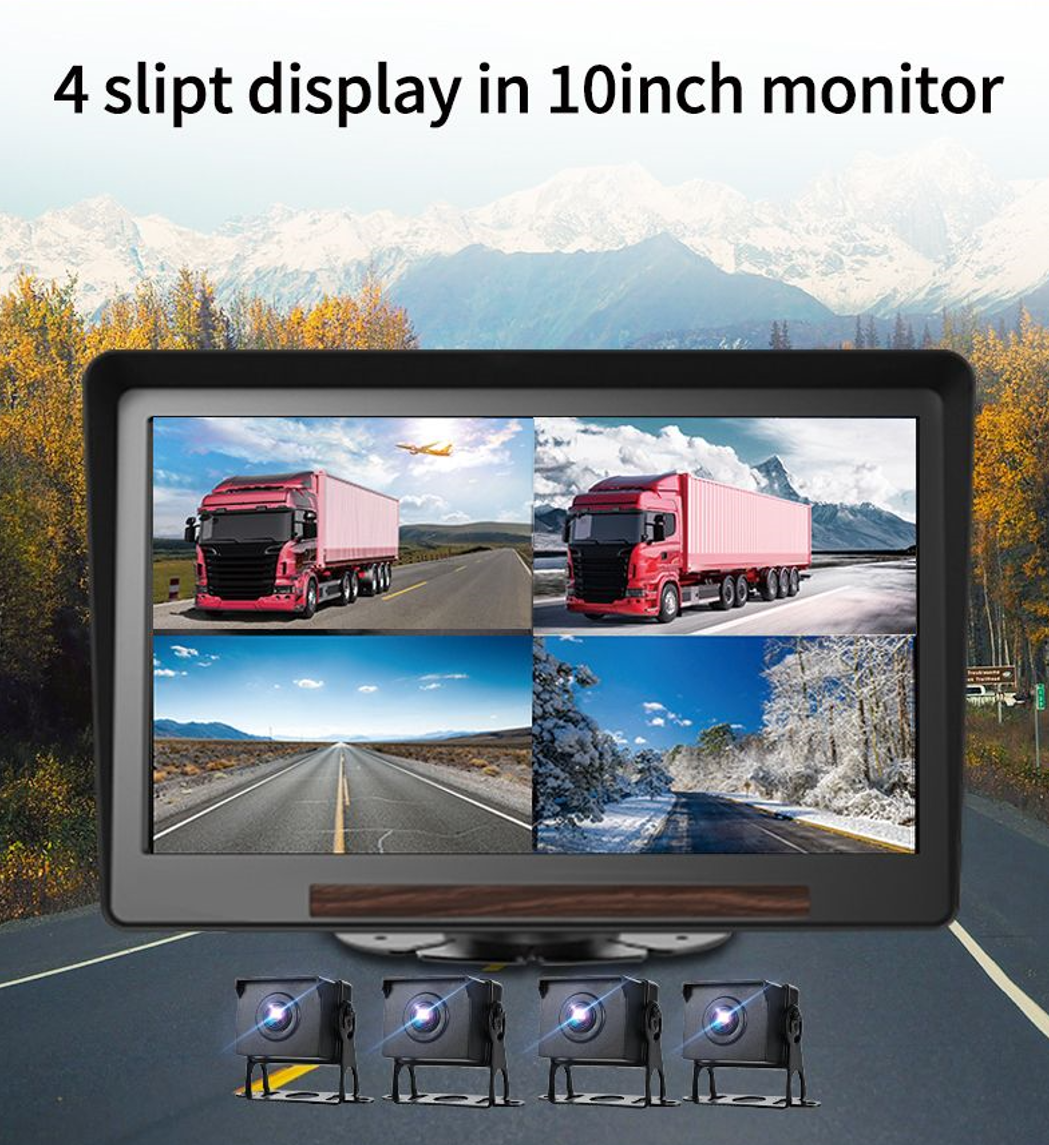

| Camera Lens | Support 4CHS video recording ( front , right , left , and back camera AHD 720P ) | |
| Remote monitor | Support Mobile APP and PC remote monitor, and vehicle fleet management | |

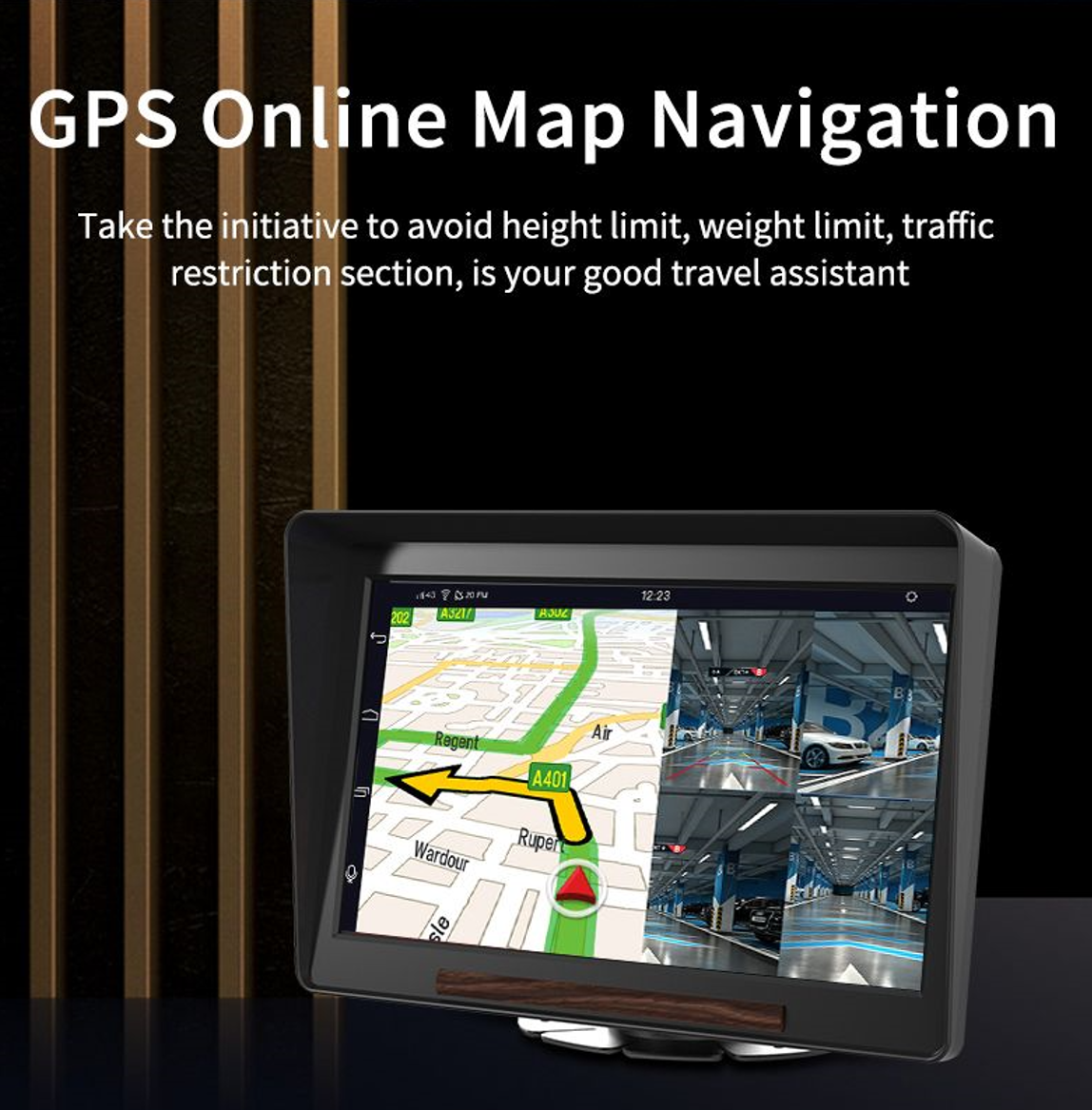

| GPS Navigation | Support Truck GPS navigation | |
| Network Bands | 2G GSM B5/B3/B8; 3G WCDMA B1/B5/B8; 4G TDD-LTE B38/B39/B40/B41; 4G FDD-LTE B1/B3/B5/B8 |
|
| Bluetooth | BT4.1, support bluetooth phone call and music transfer by BT. | |
| WiFi | 802.11ac/b/g/n 2.4G&5G, support WiFi hotspot. | |
| FM | Support FM transmit function | |
| Video format | TS | |
| Video compression | H.264 | |
| Video Recording time | 128G card support 34 hours continuously video recording. | |
| G-Sensor | 3-axis G-Sensor | |
| USB | MINI USB 2.0 , support OTG function | |
| Storage | TF card, support Maximum 256GB micro sd card (not include) | |
| Software upgrade | Upgrade by TF card, OTA online upgrade. | |
| MIC | Build in MIC-Phone Noise Reduction microphone | |
| Speaker | Built-in high-fidelity 4Ω2W speaker | |

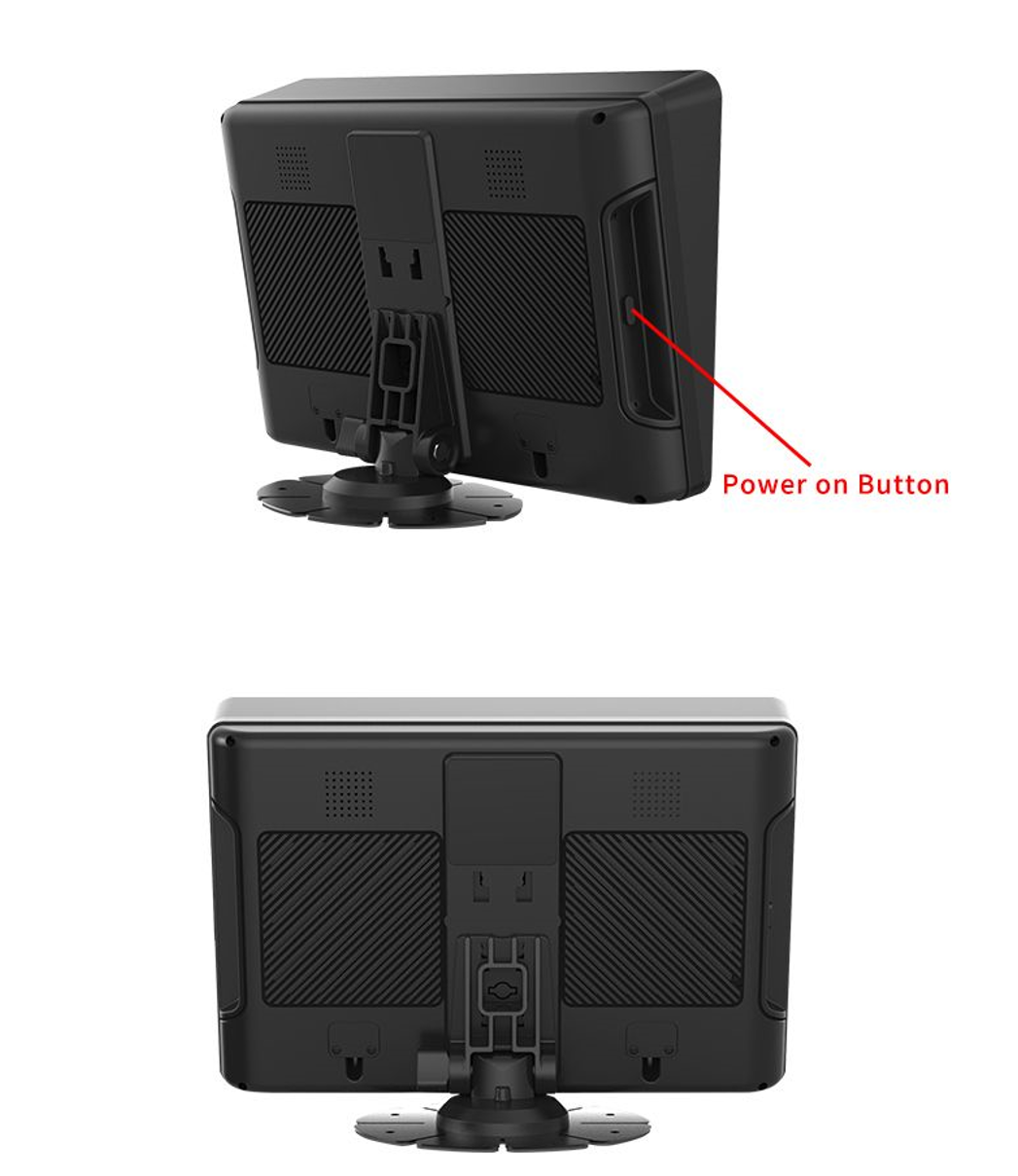

| Key buttons | Reset and power button | |
| Serial communication | Support 3 Channels UART port | |
| IO Interface | Support 4 Channels IO inputs (turn left, turn right, brake, reverse) | |
| RESET | Support | |
| Working Temperature | -20~+70°C | |
| Storage Temperature | -30~+80°C | |
| Mobile APP “CarAssist” for Android/ iOS | ||
| Parking Monitor | Support capture front and rear camera video and image | |
| Real-time preview | Support video live preview | |
| Two way voice talk | Suppore press and two way voice talking | |
| GPS track history | Support GPS logger path and video synchronous playback | |
| Monitor and Alarm | Support Message / photo alarm if collision happened when car parking | |
| Video download | Support Point-to-point video download to the phone, don’t consume internet data | |
| Share video to alburm | Support car life | |
| CarAssist app for Android/iOS | CarAssist go | |
| Active Security Cloud Platform “CMSV6” for Android/ iOS/ Windows | ||
| CMSV6 license | If need work on CMSV6 platform, need buy the CMSV6 license | |
| Cloud Server | Support to connect with your cloud server | |
| Vehicle Fleet Management | Yes, support Multiple vehicle video monitor and management | |
| Wisdom Board | Manage the vehicle status | |
| Real-time preview & playback | Support multiple device video preview and playback , download | |
| GPS log playback | Support Map mode playback | |
| CMSV6 platform for Android / iOS / Windows |
CMSV6 | |
admin –
D20 is one Android 9.0 os, 4CHS video recording, GPS navigation & track, WiFi hotspot , 4G SIM card and Remote Monitor ect Multiple functions , All in One Vehicle Fleet Management Truck DVR Camera video solution. CarAssist app and CMSV6 platform are available for remote monitor and vehicle fleet monitor.
Network Bands: 2G GSM B5/B3/B8; 3G WCDMA B1/B5/B8; 4G TDD-LTE B38/B39/B40/B41; 4G FDD-LTE B1/B3/B5/B8
